Jaltest Link

EOS S.r.l. > Listings > Truck > Jaltest Link

Description

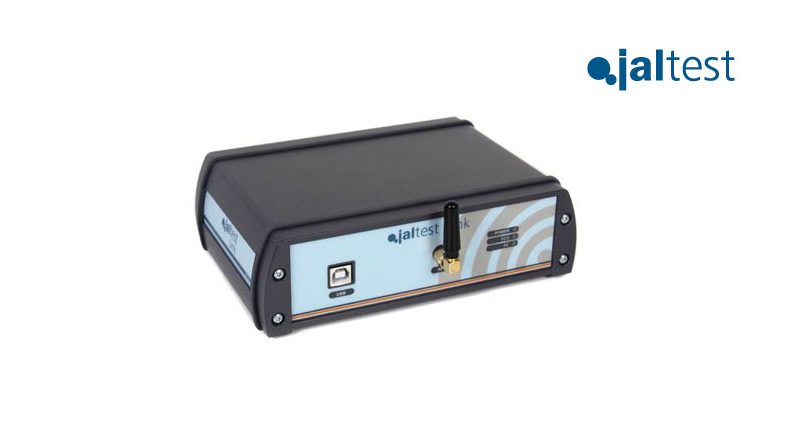

Hardware di Diagnosi Jaltest Link

Communication Interface that, along with Jaltest Soft, connects your PC to the electronic control units installed on the vehicles

It allows to connect via Bluetooth and using the USB cable.
Integrated Bluetooth connection with transmission capacity up to 50m
Rugged design
Certifications: FCC, CE, RoHs

Communication protocols (ISO 15031)

ISO 9141-2
SAE J1850 VPW
SAE J1850 PWM
SAE J1708
SAE J2534
SCI Haldex
CAN ISO 11898, ISO 15765-4 (OBD)
CAN Single Wire
CAN Low Speed
RP1210
PASS THRU

Technical features

Technical features

Operating supply voltage	8 V DC — 28 V DC
Power consumption of vehicle's battery	7 watts
Dimensions (length x width x height)	183.5 x 131.3 x 55.7 mm
Weight (without cables)	1.217 kg
Service temperature	0 °C – 40 °C
Relative air humidity	90 % (a 25 °C)

Gallery

Jaltest Link full

Jaltest Link full

Jaltest Link full

Jaltest Link full
